Adaptation kit · v1.0.0

5-gallon lid kit

Cut a hinged sub-lid into the stock hard-to-open lip lid—opening as large as the lid permits. Accommodate molded handles opposite the hinge. One lid language for kitchen collection and rack / process—no hatch in the barrel wall. Full steps: build guide.

Why this kit

Full-circumference lip lids seal well and open badly. Keep the lip locked on the pail; open a cut panel instead. Pair with an intact shell for collection, or with the rack bucket shell for modular and municipal banks.

What you build

Schematics

Build from these drawings—not from marketing photos.

Top view — largest sub-lid the lid allows; molded handle opposite the hinge
Top view — largest sub-lid the lid allows; molded handle opposite the hinge
Rack orientation — hinge at bottom of lid face so the panel hangs open when tilted
Rack orientation — hinge at bottom of lid face so the panel hangs open when tilted

Materials

Gather these before you cut. Optional items use unit optional.

Qty Unit Item Spec Notes
1 each Stock lip lid Original circular lid matched to 5-gal (19 L) food pail Gamma / snap lids OK if same cut rules; practice on a spare; keep molded handles when present
1 each Sub-lid panel Cut from same stock lid — largest opening lid permits ≥25 mm land to sealing lip; molded handle opposite hinge when present
2 each Strap hinges 40–50 mm (1½–2 in) with screws Hinge on rack bottom-of-face edge so panel hangs open when tilted
1 optional String pull Cord loop through free edge Only if no useful molded grip; kitchen lift + rare wind tie
1 optional Light latch Toggle / barrel bolt / small catch Not a padlock; stop wind/chickens only
1 optional Silicone Food-contact rated bead under panel land Odor control on kitchen lids; do not glue panel shut
1 set Tools Knife or multi-tool; drill; deburr; marker; square Eye protection

Optional spreadsheet download: materials.csv

Build guide

Mark, cut, hinge, and tune steps—including safety—are on the full build guide (HTML; works offline in the PWA). Print that page or any schematic from the browser for paper.

  1. Seat the stock lid on an empty matched pail; note molded handles; mark the largest panel with ≥25 mm land (handle opposite hinge).
  2. Cut the sub-lid; deburr.
  3. Hinge on the rack bottom-of-face edge; confirm gravity-open when tilted.
  4. Use molded pull if present; else optional string or light latch.

Photos (looks like this)

Illustrative only — never for measuring. Prefer schematics above for hinge land and opening size.

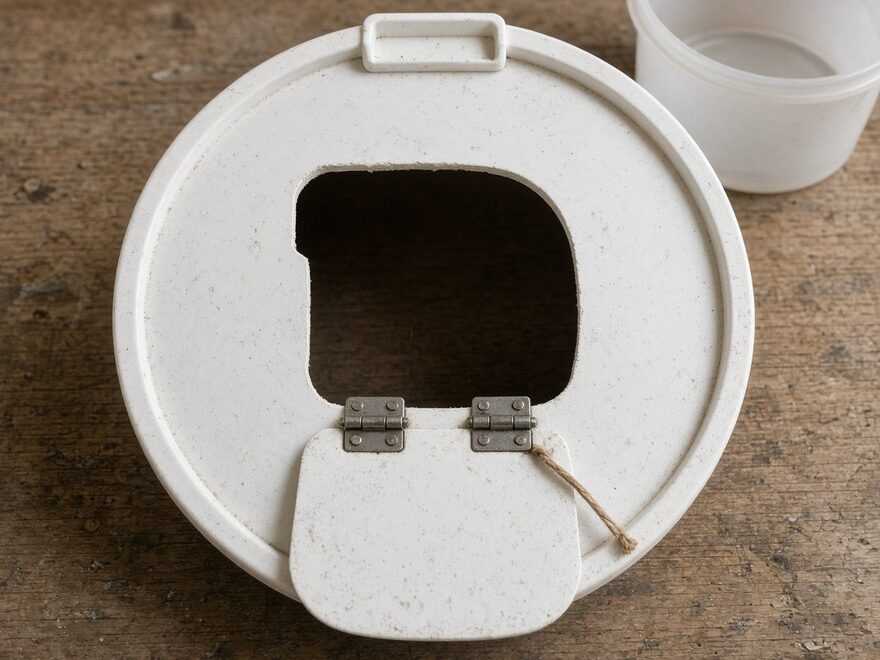

Illustrative close-up of a stock 5-gallon lid with a large hinged sub-lid cut into the top face
Illustrative AI still (v1-c) — stock lip lid with a large sub-lid hinged on the lower edge of the cutout; optional string pull. Build from the top-view schematic for land width and opening size.

License: CERN-OHL-P-2.0 · Design ID BSF-5G-LID
